Spears 406/806 90° Elbow — Autodesk Inventor Model States (PVC/CPVC) [*.ipt]

Spears 406/806 90° Elbow — Autodesk Inventor Model States (PVC/CPVC) [*.ipt]

USD0.00
SKU: 406-806

Complete Autodesk Inventor Model States file for Spears 406/806 Series 90° Elbow Socket x Socket. Covers PVC Sch40 White, PVC Sch80 Grey and CPVC Sch80 Grey in a single .ipt file.

What's included :

  • 39 Model States — all sizes from 1/2" to 12"
  • Socket geometry fully modeled with accurate G, H and M dimensions
  • Complete iProperties — Part Number, Description, Vendor, Standards
  • iMates configured for quick assembly placement
  • Compatible with Inventor 2020 and later

Photos

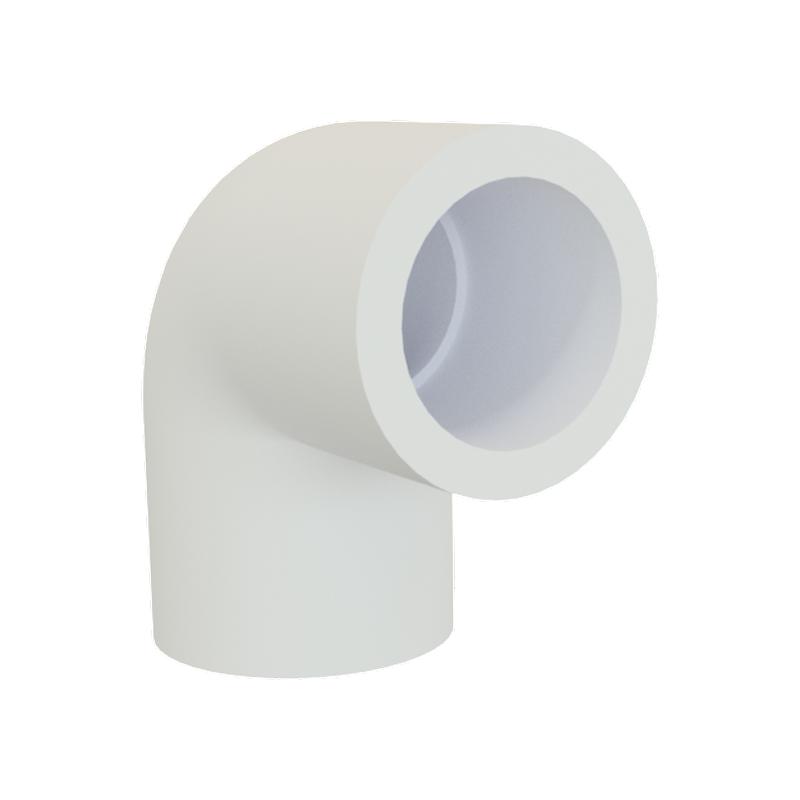

Spears 406/806 90° Elbow Spears 406/806 90° Elbow

"Stop modeling the same fittings over and over. One file. Every size. Every material. Ready to drop into your assembly in two clicks."

Model State Description Material Size
406-005 PVC Sch40 90° Elbow Socket x Socket 1/2" Sch40 PVC White 1/2"
406-007 PVC Sch40 90° Elbow Socket x Socket 3/4" Sch40 PVC White 3/4"
406-010 PVC Sch40 90° Elbow Socket x Socket 1" Sch40 PVC White 1"
406-012 PVC Sch40 90° Elbow Socket x Socket 1-1/4" Sch40 PVC White 1-1/4"
406-015 PVC Sch40 90° Elbow Socket x Socket 1-1/2" Sch40 PVC White 1-1/2"
406-020 PVC Sch40 90° Elbow Socket x Socket 2" Sch40 PVC White 2"
406-025 PVC Sch40 90° Elbow Socket x Socket 2-1/2" Sch40 PVC White 2-1/2"
406-030 PVC Sch40 90° Elbow Socket x Socket 3" Sch40 PVC White 3"
406-040 PVC Sch40 90° Elbow Socket x Socket 4" Sch40 PVC White 4"
406-060 PVC Sch40 90° Elbow Socket x Socket 6" Sch40 PVC White 6"
406-080 PVC Sch40 90° Elbow Socket x Socket 8" Sch40 PVC White 8"
406-100 PVC Sch40 90° Elbow Socket x Socket 10" Sch40 PVC White 10"
406-120 PVC Sch40 90° Elbow Socket x Socket 12" Sch40 PVC White 12"
806-005 PVC Sch80 90° Elbow Socket x Socket 1/2" Sch80 PVC Grey 1/2"
806-007 PVC Sch80 90° Elbow Socket x Socket 3/4" Sch80 PVC Grey 3/4"
806-010 PVC Sch80 90° Elbow Socket x Socket 1" Sch80 PVC Grey 1"
806-012 PVC Sch80 90° Elbow Socket x Socket 1-1/4" Sch80 PVC Grey 1-1/4"
806-015 PVC Sch80 90° Elbow Socket x Socket 1-1/2" Sch80 PVC Grey 1-1/2"
806-020 PVC Sch80 90° Elbow Socket x Socket 2" Sch80 PVC Grey 2"
806-025 PVC Sch80 90° Elbow Socket x Socket 2-1/2" Sch80 PVC Grey 2-1/2"
806-030 PVC Sch80 90° Elbow Socket x Socket 3" Sch80 PVC Grey 3"
806-040 PVC Sch80 90° Elbow Socket x Socket 4" Sch80 PVC Grey 4"
806-060 PVC Sch80 90° Elbow Socket x Socket 6" Sch80 PVC Grey 6"
806-080 PVC Sch80 90° Elbow Socket x Socket 8" Sch80 PVC Grey 8"
806-100 PVC Sch80 90° Elbow Socket x Socket 10" Sch80 PVC Grey 10"
806-120 PVC Sch80 90° Elbow Socket x Socket 12" Sch80 PVC Grey 12"
806-005-C CPVC Sch80 90° Elbow Socket x Socket 1/2" Sch80 CPVC Grey 1/2"
806-007-C CPVC Sch80 90° Elbow Socket x Socket 3/4" Sch80 CPVC Grey 3/4"
806-010-C CPVC Sch80 90° Elbow Socket x Socket 1" Sch80 CPVC Grey 1"
806-012-C CPVC Sch80 90° Elbow Socket x Socket 1-1/4" Sch80 CPVC Grey 1-1/4"
806-015-C CPVC Sch80 90° Elbow Socket x Socket 1-1/2" Sch80 CPVC Grey 1-1/2"
806-020-C CPVC Sch80 90° Elbow Socket x Socket 2" Sch80 CPVC Grey 2"
806-025-C CPVC Sch80 90° Elbow Socket x Socket 2-1/2" Sch80 CPVC Grey 2-1/2"
806-030-C CPVC Sch80 90° Elbow Socket x Socket 3" Sch80 CPVC Grey 3"
806-040-C CPVC Sch80 90° Elbow Socket x Socket 4" Sch80 CPVC Grey 4"
806-060-C CPVC Sch80 90° Elbow Socket x Socket 6" Sch80 CPVC Grey 6"
806-080-C CPVC Sch80 90° Elbow Socket x Socket 8" Sch80 CPVC Grey 8"
806-100-C CPVC Sch80 90° Elbow Socket x Socket 10" Sch80 CPVC Grey 10"
806-120-C CPVC Sch80 90° Elbow Socket x Socket 12" Sch80 CPVC Grey 12"

"These 3D models are created by Philip Rivard based on publicly available Spears Manufacturing catalog dimensions. They are not officially endorsed by or affiliated with Spears Manufacturing."
