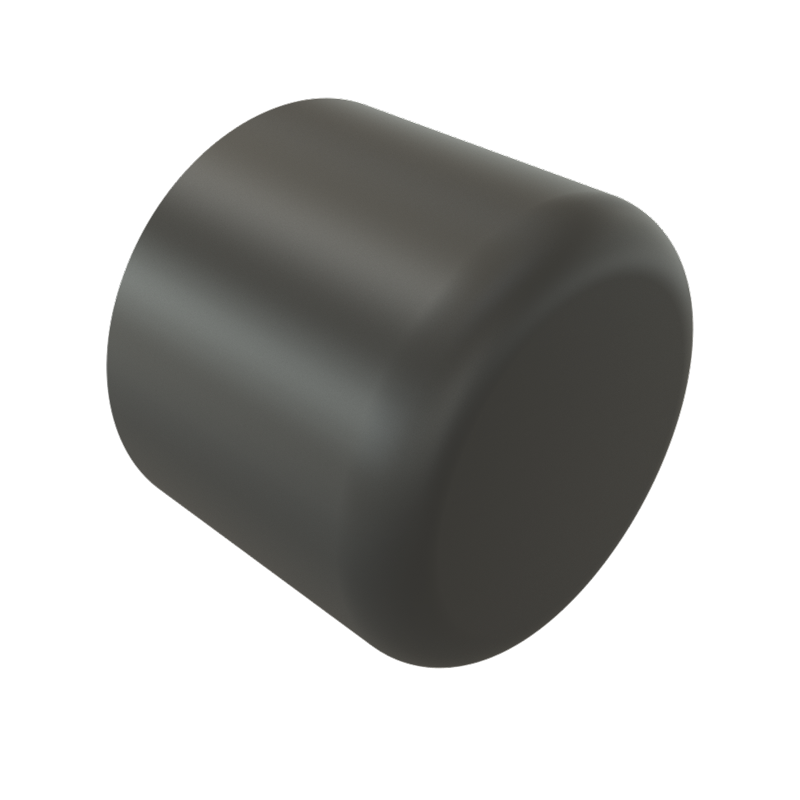

Spears 447/847 Cap (Socket) - Autodesk Inventor Model States (PVC/CPVC) [*.ipt]

Spears 447/847 Cap (Socket) - Autodesk Inventor Model States (PVC/CPVC) [*.ipt]

USD2.99
SKU: 447-847

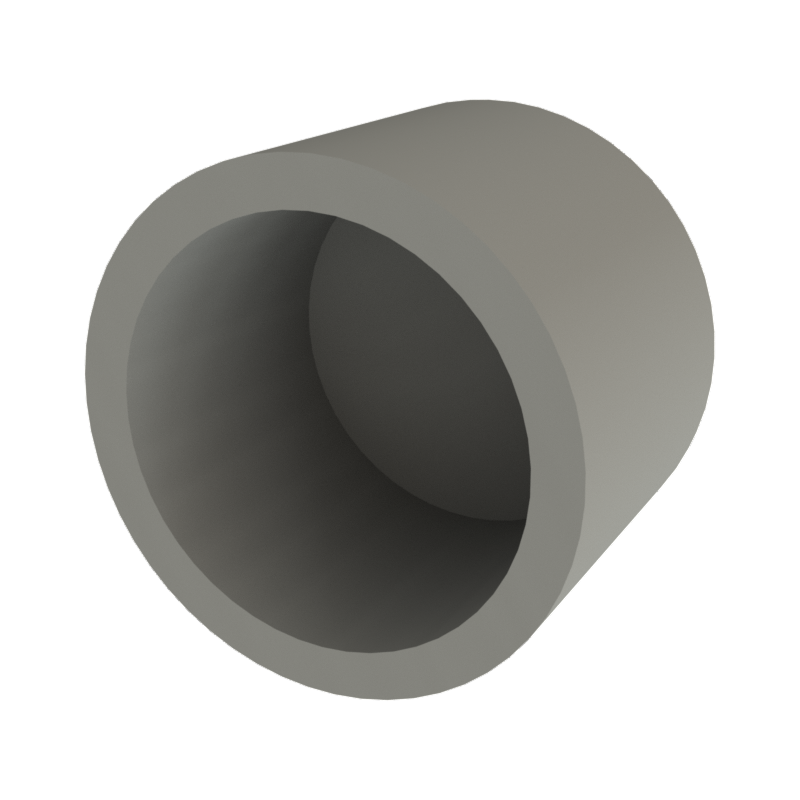

Complete Autodesk Inventor parametric Model States file for Spears 447/847 Series Cap Socket. Covers PVC Schedule 40 White, PVC Schedule 80 Grey and CPVC Schedule 80 Grey. All injection molded sizes in a single .ipt file with fully configured iMate on the socket port.

What's included:

  • 41 Model States - Cap Socket (3/8" to 8" Sch40, 1/4" to 8" Sch80/CPVC)
  • Three materials in one file - PVC Sch40 White, PVC Sch80 Grey, CPVC Sch80 Grey
  • Complete iProperties - Part Number, Description, Material, Vendor, Standards (ASTM D2466 / D2467)
  • iMate configured on the socket port for quick assembly placement
  • Dimensions sourced directly from official Spears Manufacturing catalog
  • Compatible with Autodesk Inventor 2020 and later
447-847 447-847

"Stop modeling the same fittings over and over. One file. Every size. Every material. Drop it into your assembly in two clicks."

Model State Description Material Size
447-003 PVC Sch40 Cap Socket 3/8" Sch40 PVC White 3/8"
447-005 PVC Sch40 Cap Socket 1/2" Sch40 PVC White 1/2"
447-007 PVC Sch40 Cap Socket 3/4" Sch40 PVC White 3/4"
447-010 PVC Sch40 Cap Socket 1" Sch40 PVC White 1"
447-012 PVC Sch40 Cap Socket 1-1/4" Sch40 PVC White 1-1/4"
447-015 PVC Sch40 Cap Socket 1-1/2" Sch40 PVC White 1-1/2"
447-020 PVC Sch40 Cap Socket 2" Sch40 PVC White 2"
447-025 PVC Sch40 Cap Socket 2-1/2" Sch40 PVC White 2-1/2"
447-030 PVC Sch40 Cap Socket 3" Sch40 PVC White 3"
447-040 PVC Sch40 Cap Socket 4" Sch40 PVC White 4"
447-050 PVC Sch40 Cap Socket 5" Sch40 PVC White 5"
447-060 PVC Sch40 Cap Socket 6" Sch40 PVC White 6"
447-080 PVC Sch40 Cap Socket 8" Sch40 PVC White 8"
847-002 PVC Sch80 Cap Socket 1/4" Sch80 PVC Grey 1/4"
847-003 PVC Sch80 Cap Socket 3/8" Sch80 PVC Grey 3/8"
847-005 PVC Sch80 Cap Socket 1/2" Sch80 PVC Grey 1/2"
847-007 PVC Sch80 Cap Socket 3/4" Sch80 PVC Grey 3/4"
847-010 PVC Sch80 Cap Socket 1" Sch80 PVC Grey 1"
847-012 PVC Sch80 Cap Socket 1-1/4" Sch80 PVC Grey 1-1/4"
847-015 PVC Sch80 Cap Socket 1-1/2" Sch80 PVC Grey 1-1/2"
847-020 PVC Sch80 Cap Socket 2" Sch80 PVC Grey 2"
847-025 PVC Sch80 Cap Socket 2-1/2" Sch80 PVC Grey 2-1/2"
847-030 PVC Sch80 Cap Socket 3" Sch80 PVC Grey 3"
847-040 PVC Sch80 Cap Socket 4" Sch80 PVC Grey 4"
847-050 PVC Sch80 Cap Socket 5" Sch80 PVC Grey 5"
847-060 PVC Sch80 Cap Socket 6" Sch80 PVC Grey 6"
847-080 PVC Sch80 Cap Socket 8" Sch80 PVC Grey 8"
847-002C CPVC Sch80 Cap Socket 1/4" Sch80 CPVC Grey 1/4"
847-003C CPVC Sch80 Cap Socket 3/8" Sch80 CPVC Grey 3/8"
847-005C CPVC Sch80 Cap Socket 1/2" Sch80 CPVC Grey 1/2"
847-007C CPVC Sch80 Cap Socket 3/4" Sch80 CPVC Grey 3/4"
847-010C CPVC Sch80 Cap Socket 1" Sch80 CPVC Grey 1"
847-012C CPVC Sch80 Cap Socket 1-1/4" Sch80 CPVC Grey 1-1/4"
847-015C CPVC Sch80 Cap Socket 1-1/2" Sch80 CPVC Grey 1-1/2"
847-020C CPVC Sch80 Cap Socket 2" Sch80 CPVC Grey 2"
847-025C CPVC Sch80 Cap Socket 2-1/2" Sch80 CPVC Grey 2-1/2"
847-030C CPVC Sch80 Cap Socket 3" Sch80 CPVC Grey 3"
847-040C CPVC Sch80 Cap Socket 4" Sch80 CPVC Grey 4"
847-050C CPVC Sch80 Cap Socket 5" Sch80 CPVC Grey 5"
847-060C CPVC Sch80 Cap Socket 6" Sch80 CPVC Grey 6"
847-080C CPVC Sch80 Cap Socket 8" Sch80 CPVC Grey 8"

"These 3D models are created by Philip Rivard based on publicly available Spears Manufacturing catalog dimensions. They are not officially endorsed by or affiliated with Spears Manufacturing."
