Spears 429/829 Coupling (Socket) - Autodesk Inventor Model States (PVC/CPVC) [*.ipt]
USD4.99
SKU:
429-829

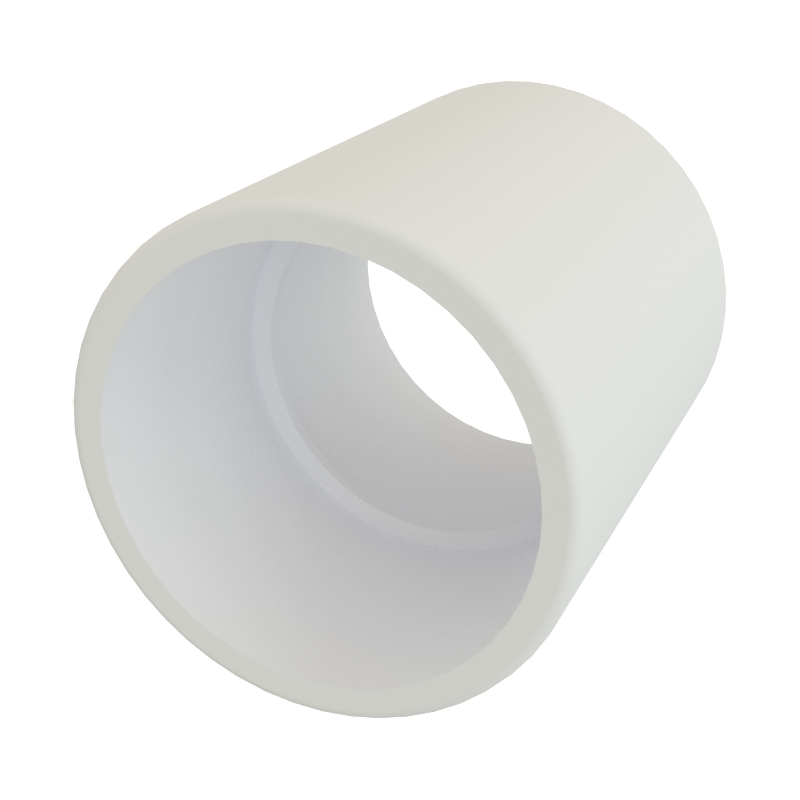

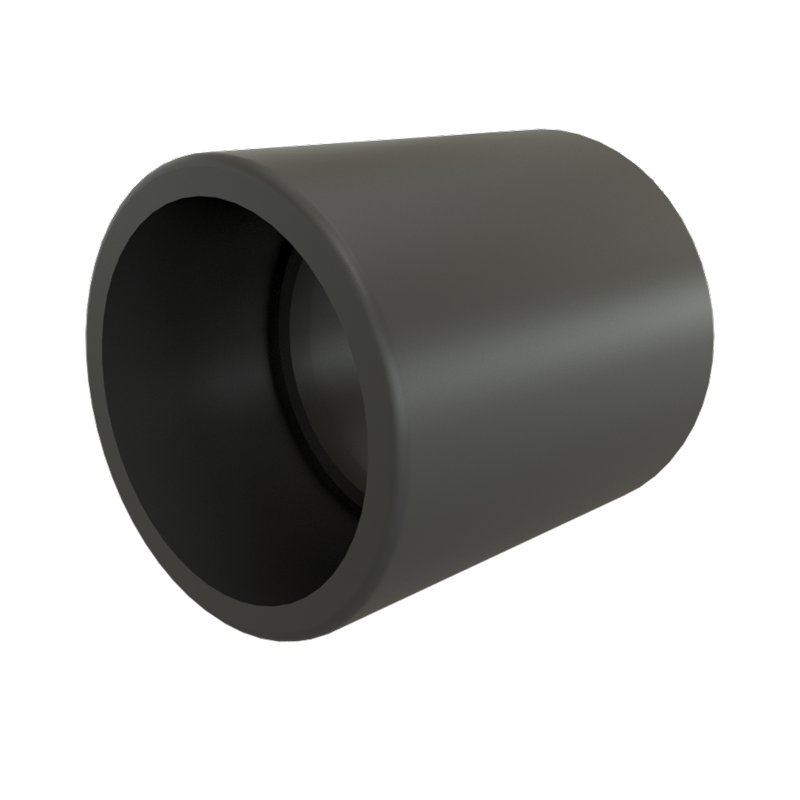

Complete Autodesk Inventor parametric Model States file for Spears 429/829 Series Coupling Socket x Socket. Covers PVC Schedule 40 White, PVC Schedule 80 Grey and CPVC Schedule 80 Grey. All injection molded sizes in a single .ipt file with fully configured iMates on both ports.
What's included:
- 46 Model States - Coupling Socket x Socket (3/8" to 12" Sch40, 1/4" to 12" Sch80/CPVC)
- Three materials in one file - PVC Sch40 White, PVC Sch80 Grey, CPVC Sch80 Grey
- Complete iProperties - Part Number, Description, Material, Vendor, Standards (ASTM D2466 / D2467)
- iMates configured on both ports for quick assembly placement
- Dimensions sourced directly from official Spears Manufacturing catalog
- Compatible with Autodesk Inventor 2020 and later
_main.png) |
_main.png) |
"Stop modeling the same fittings over and over. One file. Every size. Every material. Drop it into your assembly in two clicks."
